1. The Main Purposes of The Single Sided Lapping Machines:


The single sided lapping machines is widely used for single-sided grinding and polishing of LED sapphire substrates, Optical Glass Wafers, Quartz Wafers, Silicon Wafers, Germanium wafers, Light Guide Plates, Optical Cutting Valve Sheets, Hydraulic Compaction, Stainless Steel, Titanium Alloy, Cemented Carbide, Tungsten Steel and other materials.





2. Working Principle of The Single Sided Lapping Machines:


1). TY-15LP lapping machine is a high precision surface grinder model. It can grind a piece by following steps: we fasten it on the Lap plate and add pressure by putting weights on the piece. Then, we can grind the working piece through its relative friction with the Lap plate.

2). The Lap plate correction device is moved back and forth by hydraulic suspension guides. The sheet surface is precision machined with diamond tools to achieve high flatness.


(Advantages:
1). The lapping plate can always maintain a high flatness, thereby ensuring the flatness of the workpiece;
2). Increased stock removal rate;
3). Improved lapping performance stability;
4). Reduce the amount of slurry used.)


3. The Characteristics of The Single Sided Lapping Machines


1). The interval type automatic spraying device is adopted, Spray time and flow can be set as needed.
2). The flatness of the Lap plate : ≤0.002mm.
3). Adjust the pressure by increasing or decreasing the weight of the weights.
4). The equipment adopts an on-off button to control system, the time and speed of the Lap plate can be set on the control panel.

5). This equipment is equipped with a Lap plate correction device, which is mainly used to correct the flatness of the Lap plate and evenly groove the Lap plate. The flatness of the corrected Lap plate can be up to 0.002mm, which plays a very critical role in the grinding of the product, and the flatness of workpiece after processing can reach 0.0005mm(φ10mm)(Note:Different materials can achieve different accuracy, and this data can not be used for all products.).

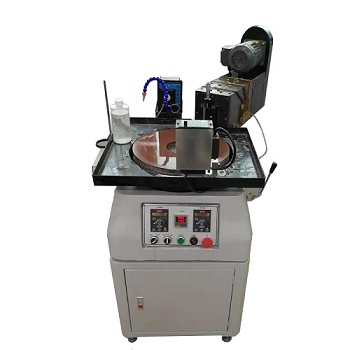

4. Equipment Pictures of The Single Sided Lapping Machines


5. Technical Specifications of The Single Sided Lapping Machines


Model

TY-15LP

Lap Plate Diameter

φ380×φ140×12t

Maximum part Diameter

φ150mm

Work Rings

φ178 mm×φ138 mm  3PCS

Plate Speed

0~80rpm

Timing Range

99h 59min

Power of Main Motor

0.75KW. 220V single phase

Power of Surface Finishing Motor

0.1KW. 220V single phase

Speed of Surface Finishing

0---150 mm/min

Overall Dimension

830×1100×1300mm

Weight

350kg


Note: The equipment can be added with a protective cover or a workpiece drive, if necessary, please inform before purchasing the equipment.
