Small Polishing Machine For Experiment

Small Polishing Machine For Experiment

Small Polishing Machine for experiment is widely used in LED sapphire substrates, optical glass wafers, ceramics, quartz wafers, molds, compressor valves, hydraulic seals, light guide plates, optical skewer joints.Keywords:Advanced, Manufacturers, Factory, Customized, In Stock, Quotation, High Precision, Easy-maintainable

Send Inquiry

Product Description


1. Main Purpose of The Small Polishing Machine For Experiment


Small Polishing Machine for experiment is widely used in LED sapphire substrates, optical glass wafers, ceramics, quartz wafers, molds, compressor valves, hydraulic seals, light guide plates, optical skewer joints.

2. Working Principle of The Small Polishing Machine For Experiment:

The workpiece is placed on the polishing disc, the polishing disc rotates counterclockwise, the dressing wheel drives the workpiece to rotate, and the workpiece is pressed by gravity, so that the relative movement of the workpiece and the polishing disc produces friction to achieve higher roughness and smooth surface

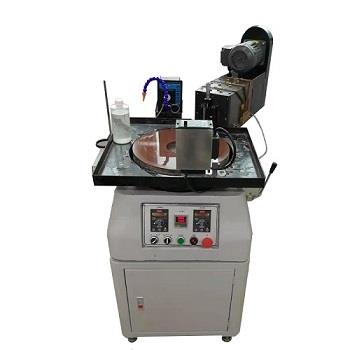

3. Equipment Pictures of The Small Polishing Machine For Experiment:


4. Technical Specifications of The Small Polishing Machine For Experiment:


Model

TY-15PL

Plate Diameter

φ380×φ140×40t

Maximum Part Diameter

φ150mm

Work Rings

φ178 mm×φ138 mm  3PCS

Plate Speed

0~80rpm

Timing Range

99h59min

Power of Main Motor

0.75KW. 220V single phase Or 380V 3 phase

Overall Dimension

680×830×1300mm

Weight

280kg


Note: The equipment can be added with a protective cover or a workpiece drive, if necessary, please inform before purchasing the equipment.



5 The Factory of Shenzhen Tengyu Grinding Technology Co., Ltd.






Shenzhen Tengyu Grinding Technology Co., Ltd. was located in Guangming New District, Shenzhen, China, with a registered capital of 5 million yuan, which plant area is about 13,000 square meters. It is an enterprise engaged in surface grinding and polishing technology. The company specializes in R&D, production and sales of various high-precision flat grinding equipment, flat polishing equipment, high-speed thinning equipment, 3D polishing equipment and its supporting consumables. Its products are widely used in precision processing of mechanical seals, electronic communications, ceramics, semiconductors, optical crystals, aerospace, automotive mold, LED, mobile phone accessories, hardware and other components. The customer base is spread all over the country and abroad, and its representatives include TF, MEEYA, Tongda Group, Hanslaser, and many other well-known companies.


6. FAQ

Q1: Are you trading company or manufacturer?
A: We're manufacturer. We have our own factory and experienced technicians.

Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3: What is your terms of delivery and delivery time?
A:EXW, FOB, CFR, CIF, DDU, etc. Generally, it will take 7 to 20 days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.

Q4: Could you provide technology support?
A: We're in this field more than 20 years. If there's any problem, please contact with us, we'll provide suggestion from our engineer to help you solve problem.

Q5: What is the MOQ of customized products?
A: We are manufacturer and can provide you small MOQ for customized products.

Q6: Do you test all your goods before delivery?
A: Yes, every products will be test before delivery.

Q7: How do you make our business long-term and good relationship?
A.:We keep good quality and competitive price to ensure our customers’ benefit, and we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q8: Is there any quality guarantee?
A: We offer one year quality guarantee. We are responsible for the quality of our mechanical seals.
