1. Main Purposes of The Surface Grinding Machine:

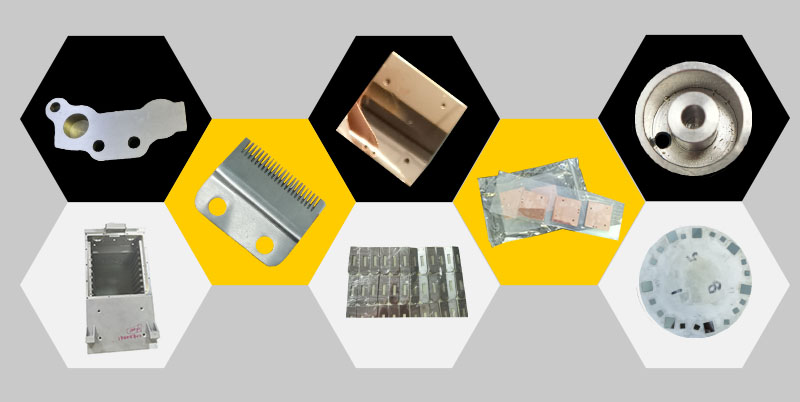

The surface grinding machine is widely used for single-sided grinding and polishing of alumina ceramics, Zirconia ( PSZ) Ceramics，SiC Ceramics, Optical Glass Wafers, Quartz Wafers, Silicon Wafers, Germanium wafers, seal ring, Stainless Steel, Titanium Alloy, Cemented Carbide,electric shaver blades,Mobile phone accessories, etc.
2. Working Principle of The Surface Grinding Machine:
1). TY-28LP Surface grinding machine is a high precision surface grinder model. It can grind a piece by following steps: we fasten it on the Lap plate and add pressure by putting weights on the piece. Then, we can grind the working piece through its relative friction with the Lap plate.
2). The Lap plate correction device is moved back and forth by hydraulic suspension guides. The sheet surface is precision machined with diamond tools to achieve high flatness.
3. Characteristics of The Surface Grinding Machine:
1). The interval type automatic spraying device is adopted, Spray time and flow can be set as needed.
2). The flatness of the Lap plate : ≤0.003mm.
3). The equipment adopts air cylinder to lift the weight without manual handling.
4). The equipment adopts an on-off button to control system, the time and speed of the Lap plate can be set on the control panel.
5). This equipment is equipped with a Lap plate correction device, which is mainly used to correct the flatness of the Lap plate and evenly groove the Lap plate. The flatness of the corrected Lap plate can be up to 0.002mm, which plays a very critical role in the grinding of the product, and the flatness of workpiece after processing can reach 0.001mm（φ10mm）.(Different materials can achieve different accuracy, and this data can not be used for all products.)
4. Technical Specifications of The Surface Grinding Machine:
|
Model
|
TY-28LP
|
|
Lap Plate Diameter
|
Φ720×φ160×12t
|
|
Maximum part Diameter
|
Φ310mm
|
|
Cylinder motor
|
0.1KW 220Vsingle phase
|
|
Plate Speed
|
0~80rpm
|
|
Timing Range
|
99h 59min
|
|
Power of Main Motor
|
3.7KW 220V single phase
|
|
Power of Surface Finishing Motor
|
0.2KW 220V single phase
|
|
Speed of Surface Finishing
|
0---120 mm/min
|
|
Working Pressure
|
0.4-0.6Mpa
|
|
Overall Dimension
|
1750×1500×2150mm
|
|
Weight
|
1800kg
|
Note: The equipment can be added with a protective cover or a workpiece drive, if necessary, please inform before purchasing the equipment.
6. The Factory of Shenzhen Tengyu Grinding Technology Co., Ltd.
Shenzhen Tengyu Grinding Technology Co., Ltd. was located in Guangming New District, Shenzhen, China, with a registered capital of 5 million yuan, which plant area is about 13,000 square meters. It is an enterprise engaged in surface grinding and polishing technology. The company specializes in R&D, production and sales of various high-precision flat grinding equipment, flat polishing equipment, high-speed thinning equipment, 3D polishing equipment and its supporting consumables. Its products are widely used in precision processing of mechanical seals, electronic communications, ceramics, semiconductors, optical crystals, aerospace, automotive mold, LED, mobile phone accessories, hardware and other components. The customer base is spread all over the country and abroad, and its representatives include TF, MEEYA, Tongda Group, Hanslaser, and many other well-known companies.
7. FAQ
Q1: Are you trading company or manufacturer?
A: We're manufacturer. We have our own factory and experienced technicians.
Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3: What is your terms of delivery and delivery time?
A:EXW, FOB, CFR, CIF, DDU, etc. Generally, it will take 7 to 20 days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q4: Could you provide technology support?
A: We're in this field more than 20 years. If there's any problem, please contact with us, we'll provide suggestion from our engineer to help you solve problem.
Q5: What is the MOQ of customized products?
A: We are manufacturer and can provide you small MOQ for customized products.
Q6: Do you test all your goods before delivery?
A: Yes, every products will be test before delivery.
Q7: How do you make our business long-term and good relationship?
A.:We keep good quality and competitive price to ensure our customers’ benefit, and we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: Is there any quality guarantee?
A: We offer one year quality guarantee. We are responsible for the quality of our mechanical seals.
